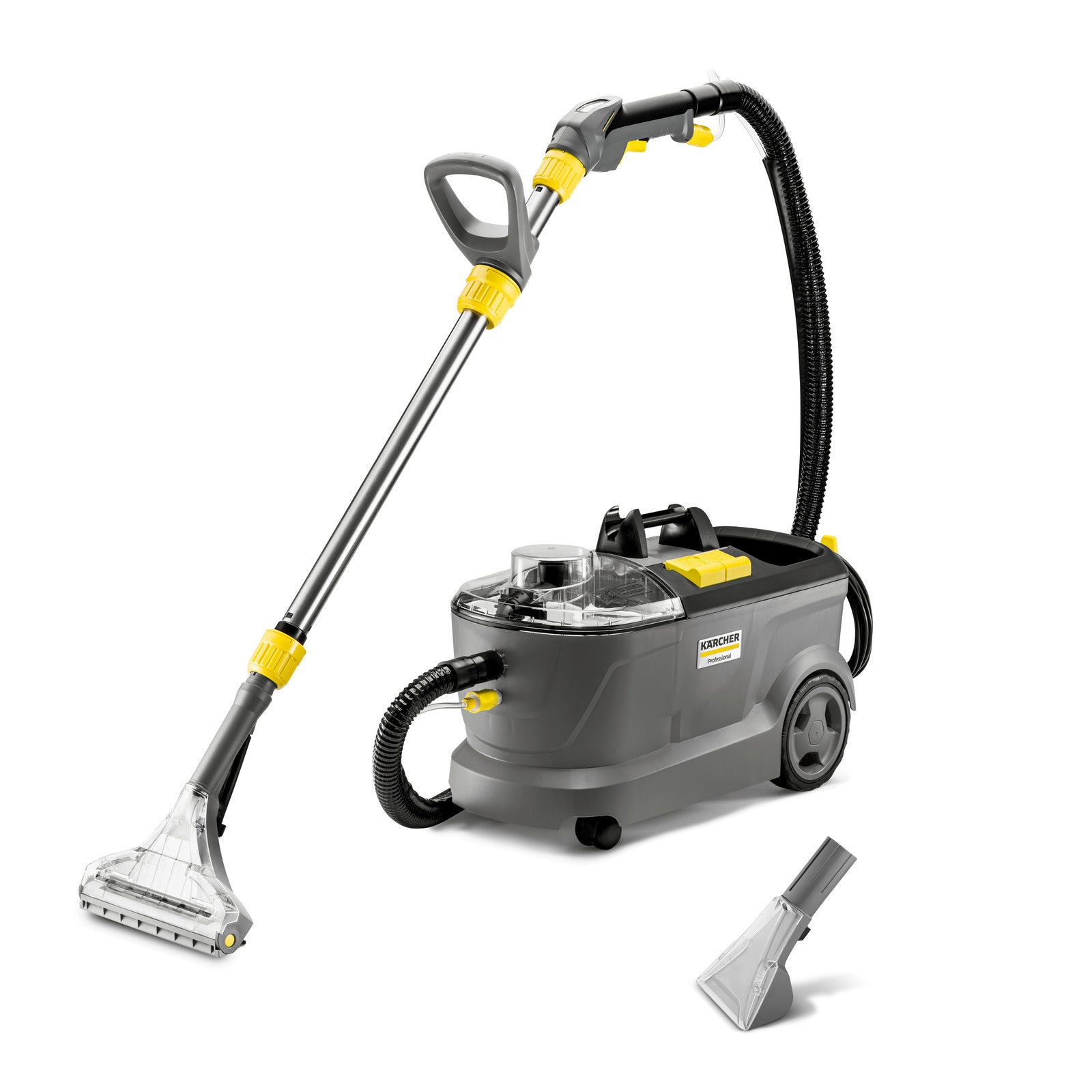

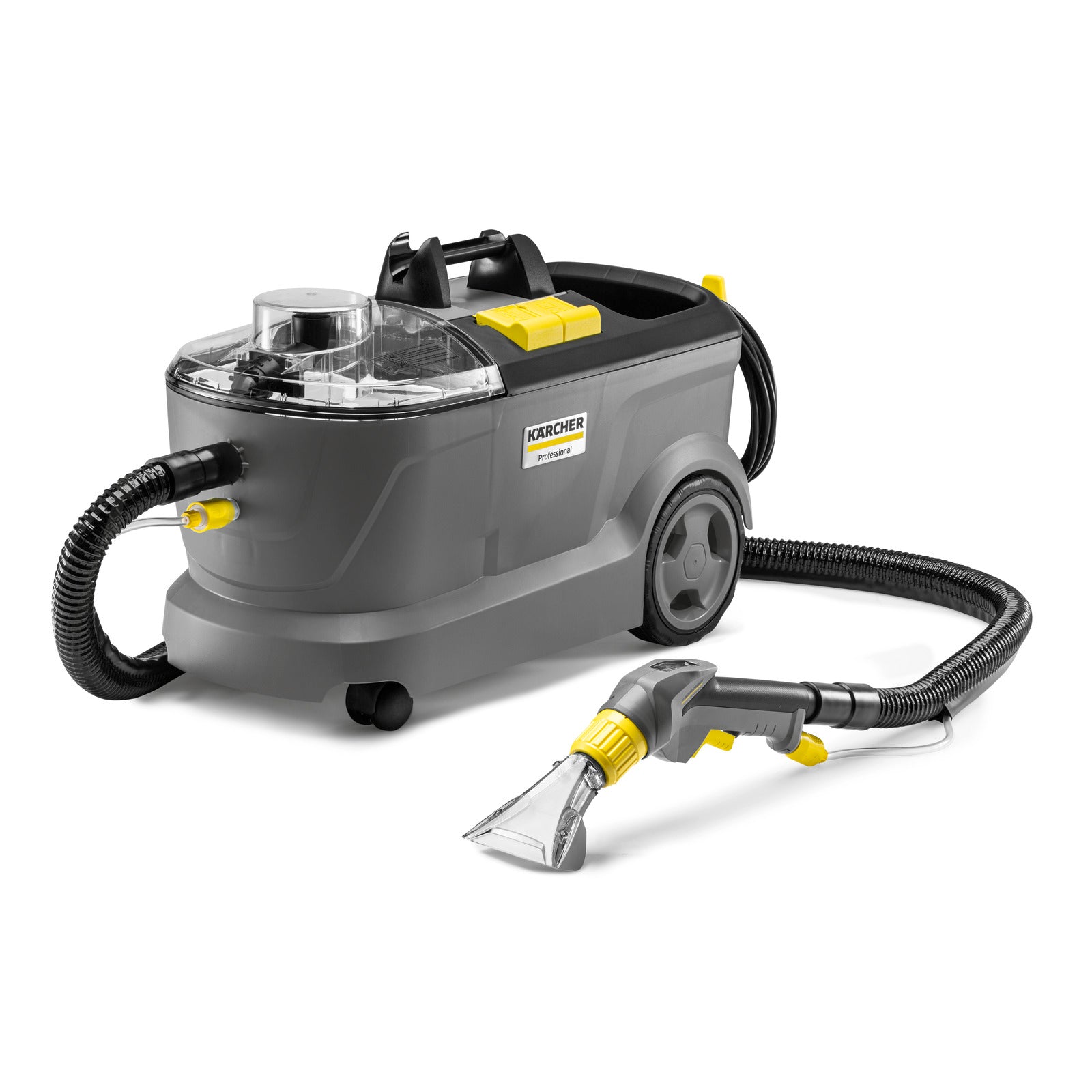

Karcher Spray Extraction Machine Puzzi 10/1
Karcher Spray Extraction Machine Puzzi 10/1
The Kärcher Puzzi 10/1 Spray Extraction Machine delivers professional-grade deep cleaning for carpets, upholstery, and textile surfaces with minimal drying time. Its powerful 12.5 PSI spray rate applies water and detergent evenly, while the strong vacuum nozzle immediately extracts moisture and dirt—allowing cleaned surfaces to dry up to 63% faster than conventional machines. Designed for durability and everyday commercial use, it features a robust turbine, efficient pump, and a comprehensive set of attachments, including floor and upholstery nozzles. The smart 2-in-1 removable tank system makes refilling and emptying easy, while large wheels and swivel casters ensure smooth maneuvering. With intuitive foot-operated controls and integrated storage for accessories, the Puzzi 10/1 is ideal for contract cleaners, auto detailers, hospitality, and more.
KEY APPLICATIONS:
Types of Environments:
Hotels, automotive detailing, offices, rental properties, and commercial cleaning services
Surface Types:
Carpets, rugs, upholstery, vehicle interiors, fabric-covered furniture, and other textile surfaces
Places:
Guest rooms, meeting rooms, lobbies, vehicle cabins, lounges, and upholstery work areas
Technical data
| Max. area performance (m²/h) | 20 - 25 |
| Air flow (l/s) | 54 |
| Vacuum (kPa) | 22 |
| Spray rate (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Fresh/dirty water tank (l) | 10 / 9 |
| Turbine capacity (W) | 1250 |
| Pump capacity (W) | 40 |
| Power supply (V) | 110 - 127 |
| Colour | anthracite |
| Weight without accessories (kg) | 10.7 |
| Dimensions (L × W × H) (mm) | 690 x 325 x 440 |
